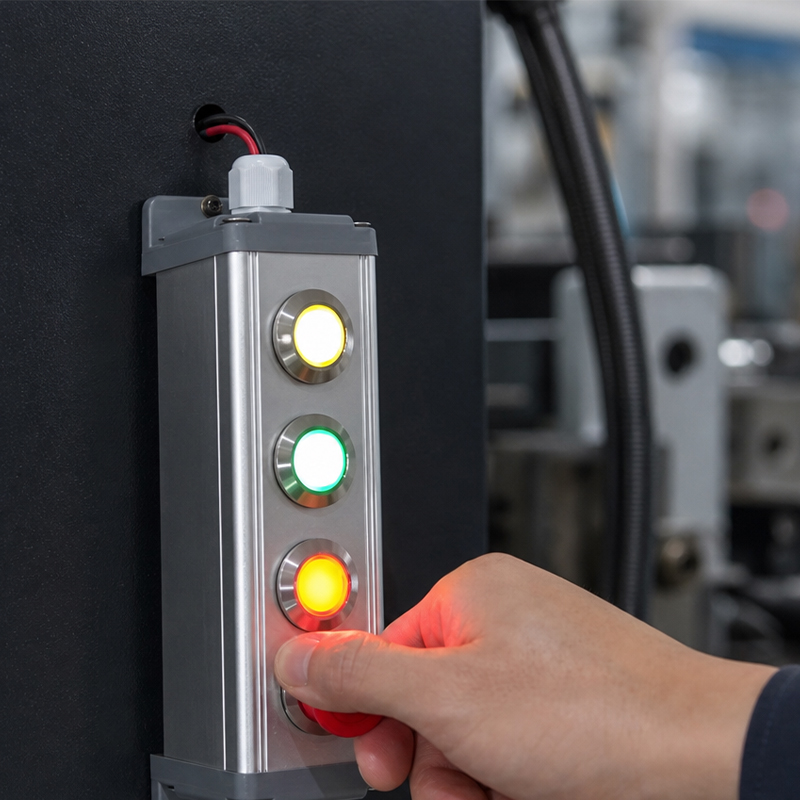

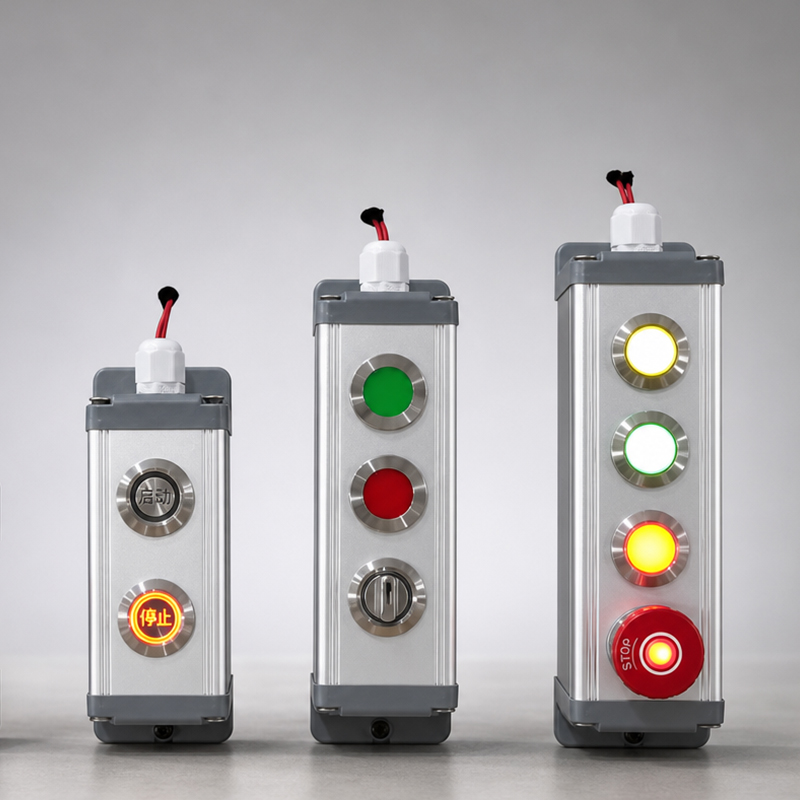

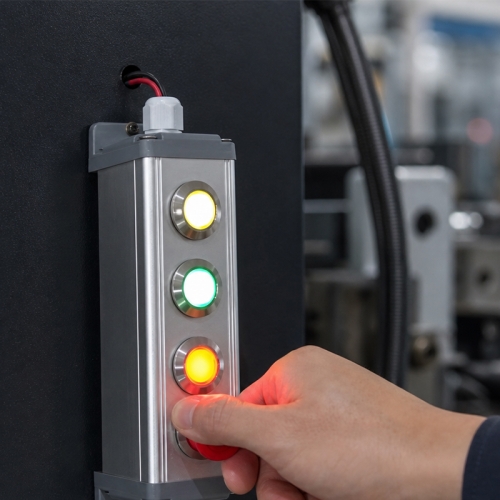

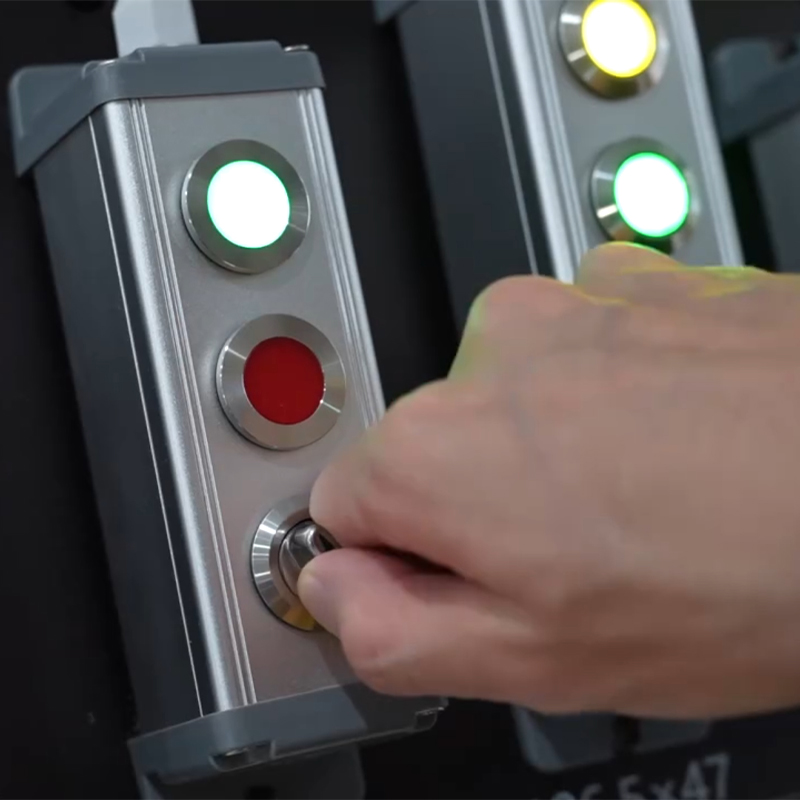

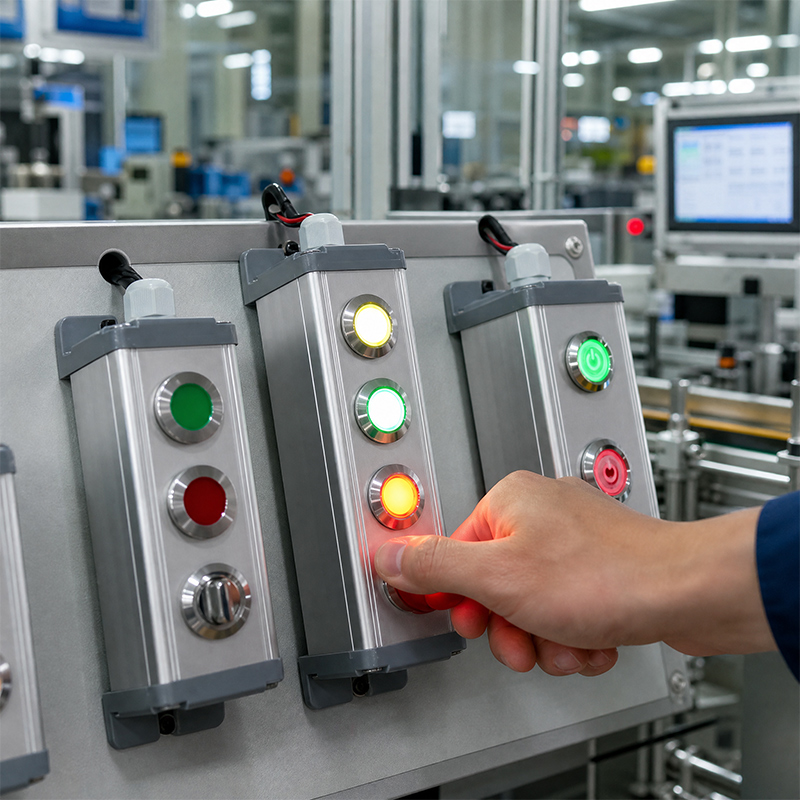

HBAN HB-BX series is an empty aluminum alloy push button control box enclosure designed for 22mm push buttons and LED signal lights in industrial control panels, machinery and equipment. Standard configurations include HB-BX1 one-hole, HB-BX2 two-hole, HB-BX3 three-hole and HB-BX5 five-hole versions, with custom layouts available up to six holes. The enclosure operates in ambient temperatures from -25°C to +65°C. HBAN can supply the enclosure alone or combine it with compatible 22mm push button switches and LED signal lights. IP65 applies to the select button switch, not to the enclosure itself. Contact HBAN for the latest 2D/3D drawings, specifications, samples and quotation.

★Product parameters

Legend	Hole quantity	Model	Description	Dimension drawing
	1	HB-BX1	Aluminum alloy one-hole button box
	2	HB-BX2	Aluminum alloy two-hole button box
	3	HB-BX3	Aluminum alloy three-hole button box
	4	HB-BX4	Aluminum alloy four-hole button box
Custom	5	HB-BX5	Aluminum alloy five-hole button box	Contact the HBAN official to confirm the latest version
	Up to 6	HB-BX6	Aluminum alloy five-hole button box	Contact the HBAN official to confirm the latest version

The HB-BX enclosure is supplied as an empty box unless a complete assembly is requested. IP65 (IP rating guide)refers to the selected compatible push button switch and does not represent the waterproof rating of the aluminum alloy enclosure. Five-hole and six-hole layouts can be produced on request. Please contact HBAN for the latest 2D/3D drawing and specification because product structures may be updated.


★FAQ

Q: Is the HBAN HB-BX series supplied as an empty control box?
A: Yes, the HB-BX series only provides empty control boxes. If you need to pair them with button switches or signal lights, please let us know the specific products you require.

Q :Which 22mm push buttons and LED signal lights can be installed?
A: A 22mm round metal push-button switch or a 22mm LED signal light can be used in conjunction with the HB-BX button box..

Q :Can HBAN supply push button switches with the enclosure?
A: Sure, we can offer products that combine buttons with button boxes for assembly. Besides, we can also provide products that combine button switches with panels, and button switches with connectors, etc..

Q: Can HBAN produce a five-hole or six-hole button box?
A: It can be produced, but due to the low demand from the customer base, it is considered an unconventional product. When purchasing, a minimum order quantity of 100 to 500 pieces is required.

Q : What is the working temperature range?
A: The operating temperature range of the button box is from -25°C to +65°C.We will use good packing to ensure safety.We will be responsible to any product damage caused on delivery.

Q : Can the number and mounting size of the holes be customized?
A:The number and size of the holes can be customized. The minimum order quantity of the products needs to be 500 - 1000 pcs.

Q : What is the MOQ for the empty box and for a box with buttons?
A:The minimum order quantity for empty boxes and boxes with buttons is 3pcs - 5pcs.

Q : Can HBAN provide the latest 2D/3D drawings and specifications?
A:2D/3D drawings are available. Please contact us to obtain the latest files.

Q : What information is needed for an accurate quotation?
A:To prepare an accurate quotation, please provide the required hole quantity and mounting-hole specification, such as a standard HB-BX model or a custom layout. Please also specify whether you need the empty aluminum alloy enclosure only or a complete assembly with 22mm push button switches and LED signal lights.

Please include the required quantity, destination country, preferred button or signal-light specifications, and any available product drawings, panel drawings or application photos. If you need the latest 2D/3D drawings or product specifications, please mention this in your inquiry. We will then confirm the suitable configuration, MOQ, sample availability, lead time and shipping options..
